AirMax installation on 2003 PT Cruiser Turbo
7) Bolts on bottom of AirMax
Return to Zippy's Page

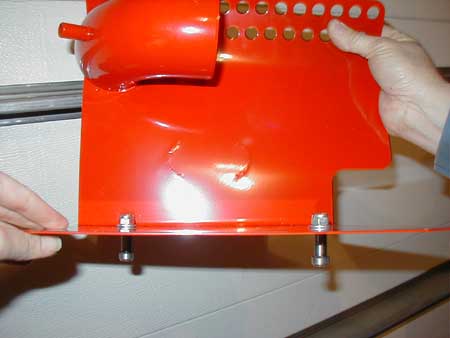

06-Studs-on-bottom-of-AirMax

Install the two included 3/8"bolts, nuts and washers through the bottom of the AirMax housing and tighten them in place (they are locknuts so just tighten everything up tight and don't worry about torque), with the heads of the bolts pointing downward. The two bolts will insert in to the supports that held the bottom of the OEM air filter housing. (see step 4)
