AirMax installation on 2003 PT Cruiser Turbo
8) Loosening clamp on air inlet at turbo
Return to Zippy's Page

07-Loosening-clamp-on-air-inlet-at-turbo

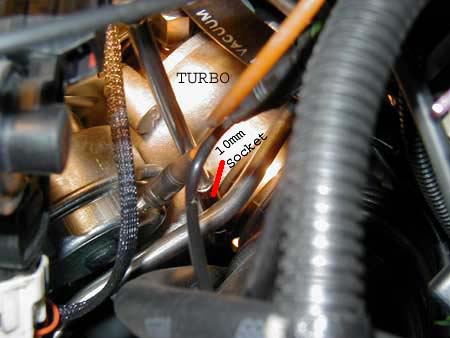

The next step is to install the AirMax in your PT. In preparation for that, you'll probably need to loosen up the clamp on the air inlet hose at the turbo inlet to have enough inlet hose movement to get the AirMax flange aligned with the air inlet hose. The turbo is located approximately in the center rear bottom of the engine compartment.
